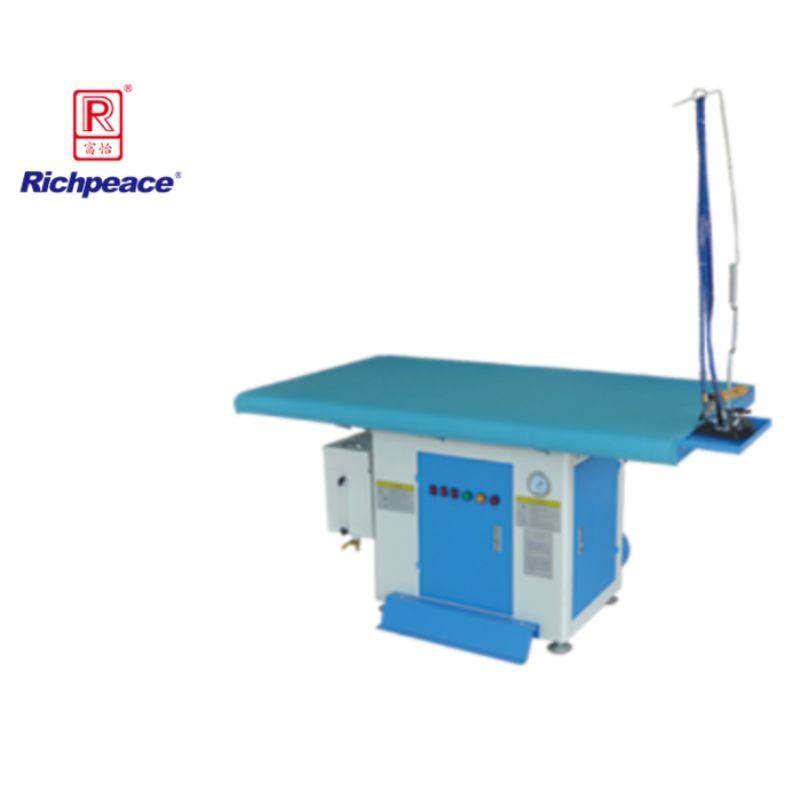

Richpeace Vaccum Ironing Table Inbuilt With Steam Generator Series

RP-1200/1500/1800A

RP-1200/1500/1800B

It is applicable to garment factory, laundry, hotel and other industries.

Product Introduction

1. Integrated design, one table with one steam iron, automatically control of adding water and heating.
2. Built in steam furnace, short pipeline, low heat loss, maintaining steam temperature and dryness.
3. Energy saving advantages: unique steam cycle utilization structure, achieving full utilization of iron end-steam, saving about 40% steam consumption compared with other same type products.
4. Stainless steel furnace, iron with no stains or splashes, to avoid dirtying clothes.
5. The heating area of the water inside the furnace body is increased, achieving fast heating, fast temperature rise, and sufficient steam volume.
6. Equipped with mobile casters, which can move freely and facilitate factory adjustments to production processes.

Machine Parameters
Voltage&Frequency &Vacuum Motor Power 1PH AC220V/50Hz 0.8KW

3PH AC380V/50Hz 0.75KW

Total Power 5.9KW/5.85KW
6.9KW/6.85KW
Water Tank Capacity 16L
Steam Pressure 0.4 Mpa
Steam Output Consumption 7kg/h
Table Heating Steam heating(Fixed temperature:80-100℃)

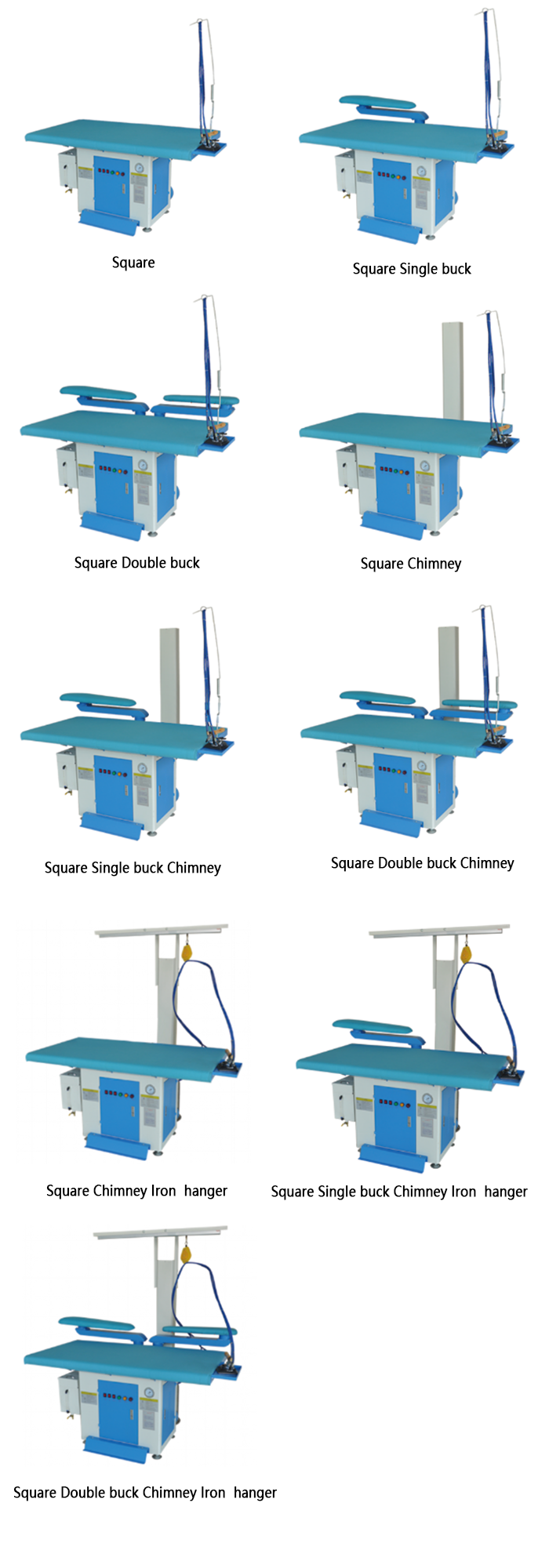

Buck Heater Option
Upward Chimney Option
Iron Hanger Option
Table Size 1500*780mm
1200*780mm
Customized is available
Product Parameters
Model RP-1200/1500/1800A

RP-1200/1500/1800B
