Product Introduction
1. High precision with tolerance less than 0.01mm.
2. Professional laser tube water chiller can ensure perfect engraving effect and prolong the laser tube working life.
3. The engraving/cutting software can be directly connected to AutoCAD, CorelDraw, AI, Garment CAD,etc., and support graphic formats: BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, AI, DXF , DST, outputting the original image.
4. The laser cutting software center can set the cutting parameters separately through different line colors to realize the simultaneous output of cutting and marking functions.
5. 128M bulk storage can store multiple work data, and support USB hot swap read and write.
6. The new working platform has strong corrosion resistance, easy to clean up debris and dirt, and undeformable after long-term use.
7. The exclusive upper and lower smoke exhaust structure effectively discharges the smoke and heat generated in the production without peculiar smell and meets environmental protection requirements.

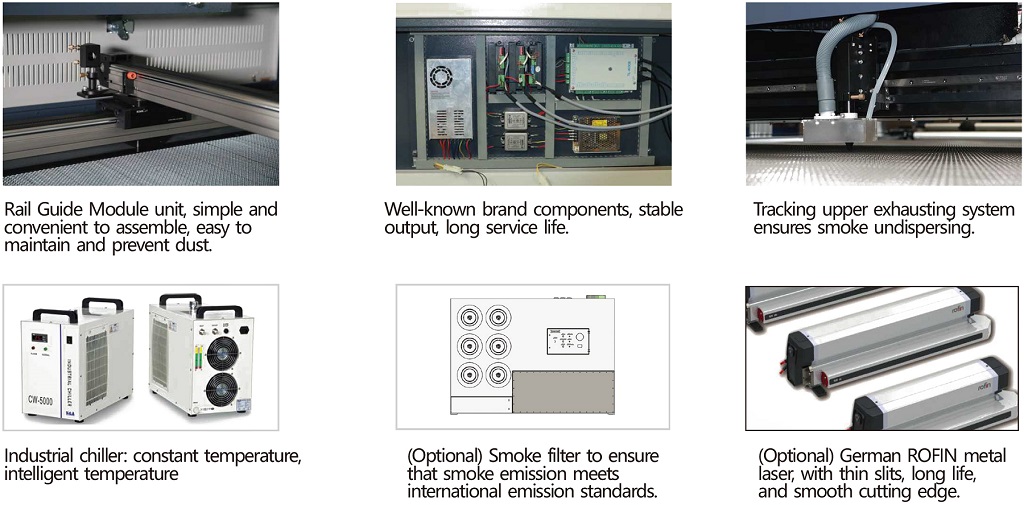

Main Configuration
Product Parameters
| Model | RPLC-NM-N-1-1000×1000-C-SL-EGC100-SP-1P220V
RPLC-NM-N-1-1300×900-C-SL-EGC100-SP-1P220V RPLC-NM-N-1-1900×1000-C-SL-EGC100-SP-1P220V |
| Size | 1000mm×1000mm
1300mm×900mm 1900mm×1000mm |
| Speed | 500mm/s |
| Power Supply | AC220V±10%,50Hz |
| Installation Area | 1530mm×1700mm×1420mm
1830mm×1600mm×1420mm 2430mm×1700mm×1420mm |
