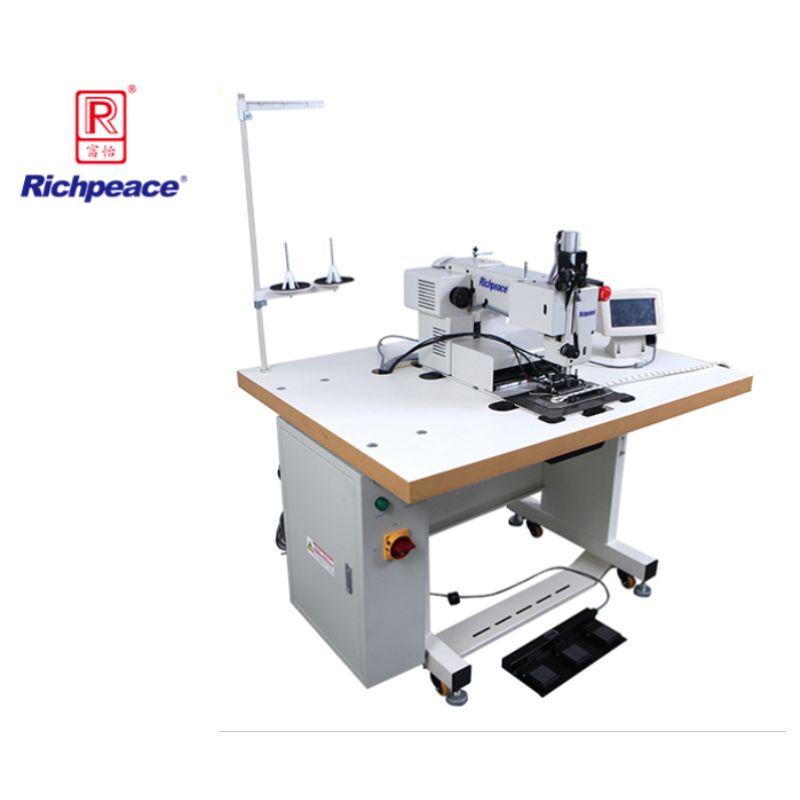

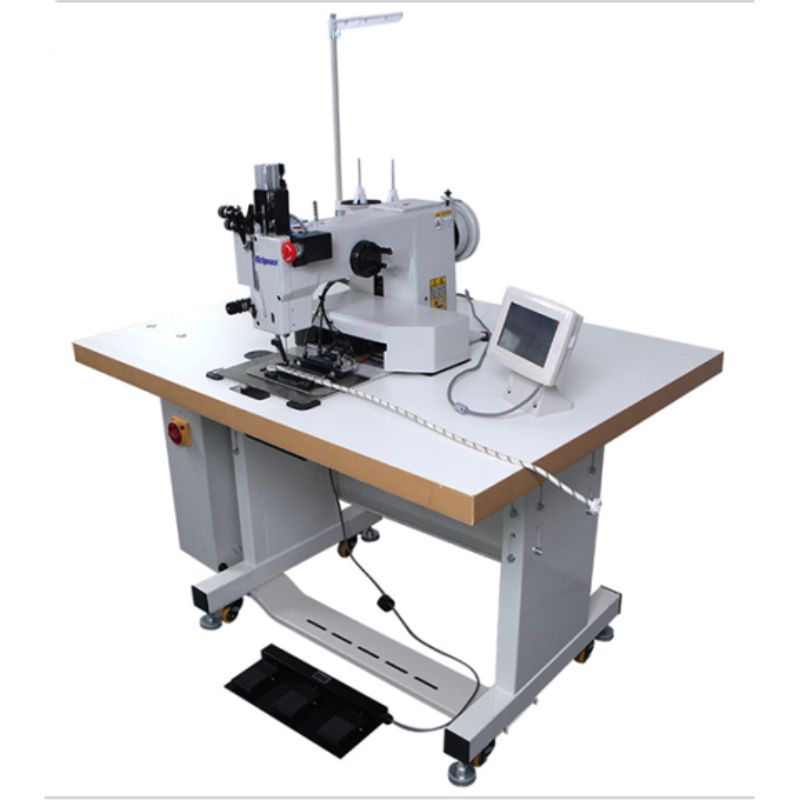

Product Introduction
1. This machine adopts a super large shuttle bobbin. It does not need to change the shuttle bobbin frequently when sewing thick thread. It can easily sew 1500d thick thread with a thickness of 15mm and a maximum speed of 800rpm .
2. Super large 6 times shuttle bobbin, large thread capacity, reduce the time for changing shuttle bobbin, improve efficiency, reduce the wear of shuttle shell and prolong the service life of the machine .
3. Guide rail with international branded belt and pneumatic components.
| Model |
RP-1306GF |
RP-3020GH |
RP-5030GH |
| Sewing Area |
130mm*60mm |
300mm*200mm |
500mm*300mm |
| Max.speed |
800rpm |
| Max.stitches |
8000stitches/Patterm |
| Max.patterms |
Machine memory is 1000designs only, the designs can be saved on USB disk and the quantity is unlimited. |
| Hook |
Shuttle hook |
| Needle |
DY*3 180#~250# |
| Work holder lift |
38mm |
| Max.thickness |
6-22mm |
| Presser foot system |
air pressure / motor(choose) |
| Power |
750W |
| Electric tension |
AC220V with ground fault protection |
| Machine area |
1200*90*1270mm |
1200*1060*1275mm |
1350*1580*1180mm |
| Net weight |
145KG |
170KG |
300KG |
Product Parameters
| Model |
RP-1306GF\3020FG\5020GH |
| Speed |
800rpm |
| Power Supply |
AC220V 50HZ\60HZ |
