Product Introduction
1. Recognize the graphic outline automatically and cut with high precision;
2. Be able to solve the cutting problems of deforming with high elastic printed fabrics and other fabrics;

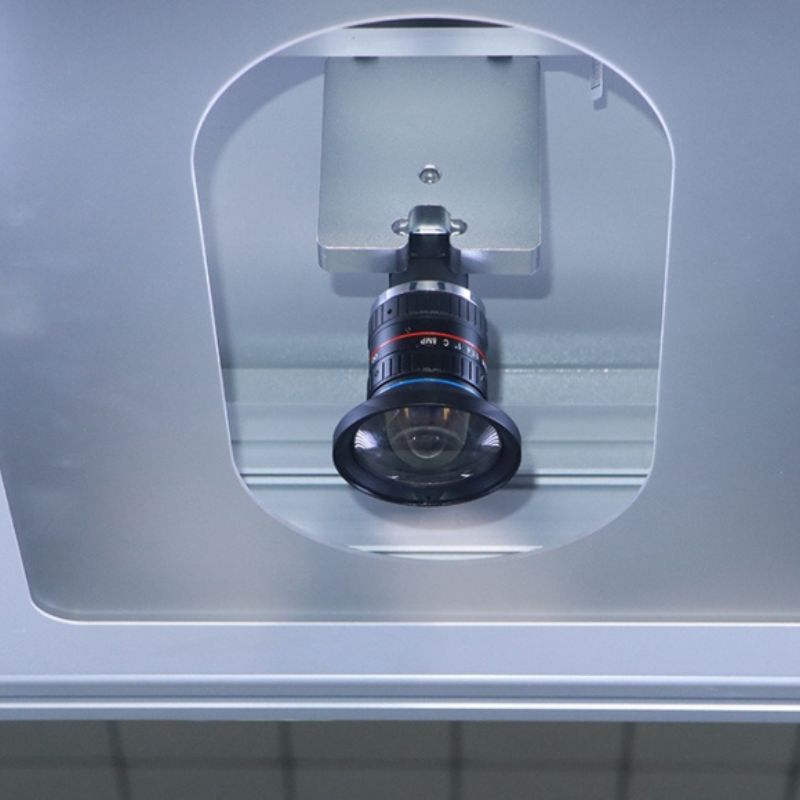

3. Adopt 18 million pixel high precision camera to achieve genuine camera function, camera area up to 1600x1000mm;
4. Be able to cut all kinds of graphics automatically;
5. Can install auto feeding system to realize continuously.
Product Parameters
| Model | RPLC-NM-N-1-1600×1000-C-SL-CGC80-LCI,IN-1P220V
RPLC-NM-N-1-1800×1200-C-SL-CGC80-LCI,IN-1P220V RPLC-NM-N-1-1800×1000-C-SL-CGC80-LCI,IN-1P220V RPLC-NM-N-4-1900×1000-C-FM-CGC80-LCI,IN-3P380V |
| Size | 1600mm×1000mm
1800mm×1200mm 1800mm×1000mm 1900mm×1000mm |
| Speed | 600mm/s |
| Power Supply | AC380V/220V±10%,50Hz |
| Power | 1.7KW |
| Installation Area | 2130mm×1950mm×2320mm
2330mm×2150mm×2320mm 2330mm×1950mm×2320mm 2750mm×2650mm×2400mm |
