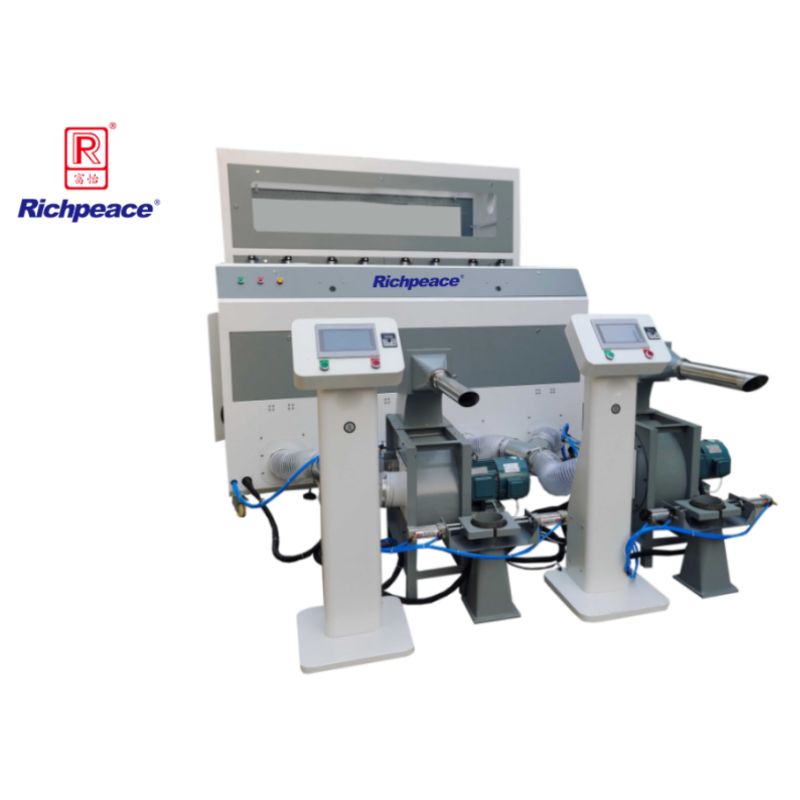

Product Introduction
1. Adopt high-precision sensors, the accuracy value is adjustable within 1 gram; adopt super large hopper, the single weighing range is about 10-1200 grams, which solves the problem that filling large grams of products in the home textile industry has been unable to accurately quantify.
2. Oversized storage box can store 50KG materials at one time, saving the feeding time. Optional unmanned feeding system,automatically feed when there is no material in the storage box, and automatically stop when there is material.
3. It solves the problem of multi-purpose of a single machine, and can be compatible with filling 3D-17D high fiber cotton, down and feather pieces (10-80MM in length), flexible latex particles, high elastic sponge scraps, wormwood, as well as the mixture involved, fully improving the cost performance of the equipment.
4. Modular configuration of filling nozzle: θ 60mm、 θ 80mm、 θ 110mm, can be replaced without any tools according to the product size.
5. This machine can be linked with streamline equipment such as bale-opener, cotton-opener, mixing machine, and can realize production automation.
6. Adopt PLC programmable controller and high-precision weighing module, achieveing more accurate and efficient production capacity.
7. One person can operate two filling mouths at the same time, reducing labor and saving costs.
Environment Requirement
Temperature: Per GBT14272-2011 requirement,filling test temperature is 20±2℃
Humidity: Per GBT14272-2011, the humidity of filling test is 65±4%RH
Compressed Airrequirement
Air volume≥0.9㎥/min.
Air pressure≥0.6Mpa.
If the air supply is centralized, the pipe should be within 20m,the diameter of the pipe should not be less than 1 inch. If the air source is far away, the pipe should be bigger accordingly. Otherwise, the air supply is not enough, which will cause filling instability.
If the air supply is independent, it is recommended to have 7.5kW or more high-pressure air pump(1.0Mpa).
Machine Parameters
| Model | RP-FF | QTY of filling | 2 |
| Main Body Size | 2400×900×2200mm×1 | Main Body and Independent table | 2250×900×2300mm×1 |
| Weighing Box Size | 2200×950×1400mm×1 | Weighing Box | 2200×950×1400mm×1 |
| Filling Fan | 800×600×1100mm×2 | ||
| Independent Table | 400×400×1200mm×2 | Filling Fan and Feeding Fan | 1000×1000×1000mm×1 |
| Feeding Fan | 550×550×900mm×1 | ||
| Area Covered | 5000×3000mm 15㎡ | Filling Range | 10-1200g |
| Storage Capacity | 20-50kg | Cycle Number | 2times |
| Accuracy Class | Down ±5g
Fiber ±10g |
USB Data Import Function | Yes |
| Heavy Duty Allocation Dunction | Yes | Auto Feeding System | Optional |
| Filling Speed | 300gpillow : 7pcs/min | Air Pressure | 0.6-0.8Mpa |
| Net Weight | 1305kg | Gross Weight | 1735kg |
| Voltage | 3P380 | Power | 10.5kW |
Product Parameters
| Model | RP-FF |
