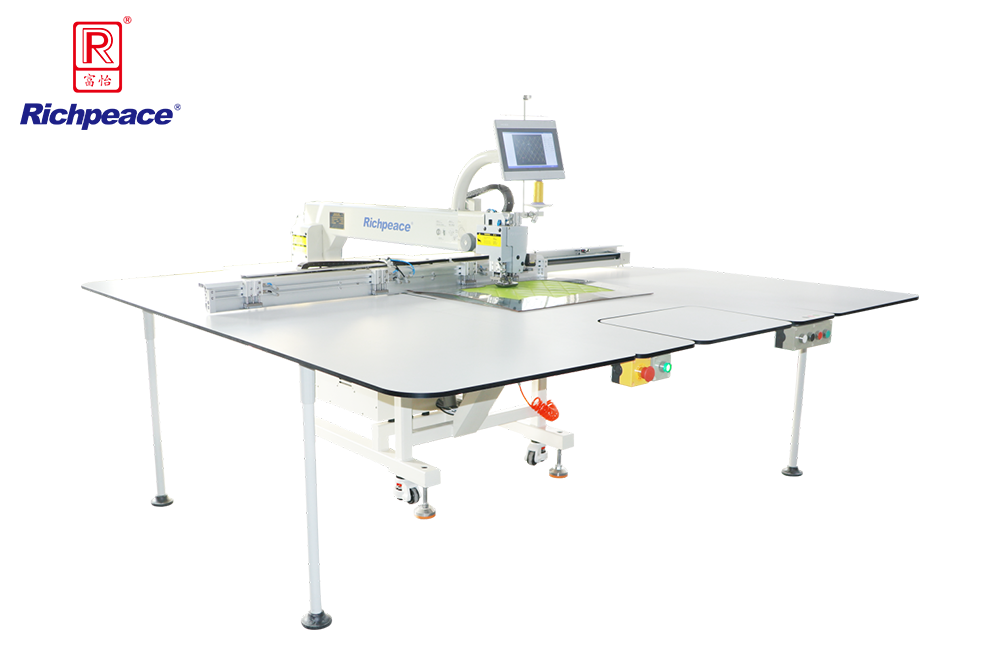

Richpeace Garment Automatic Template Sewing Machine

Down jacket, padding jacket auto-sewing, Denim, shirt, suit, fashion, etc. Garment parts (placket, zipper, pocket, shoulder loop, sleeve cuff),auto-sewing.
Category:

1. Richpeace Model III computer control system, friendly human-machine interface, flexible touch control, and large storage capacity, ensure high precision operation of the machine.

2. X, Y movements are driven with high precision ball screws and linear guide structure, higher precision, better stability

3. Automatic lubrication to machine head and rotary hook case, prolongs machine service lifespan.

4. Sewing head is equipped with anti-down leaking technology to ensure no down leakage during the sewing process for down garments.

5. Lifted elastic presser foot, with adjustable height automatically according to different material thickness, ensures the stitches more accurate and more beautiful.

6. X direction template base is pneumatic clamping structure, convenient to install and remove template.

7. Folding working table, elegant construction, convenient for garment factory to place the machine.

8. Bar code recognition function, fast to read the patterns.

9. Rotary hooks, bearings, belts, guide rails, pneumatic parts, are of international well-known brands, longer service time.

10. Optional Richpeace AutoSew CAD system , freely import various of template files, no format conversion required.

Model

RPAS-LM-C-1-1300×900-A-IS1-VR1-1P220

RPAS-LM-C-1-1200×800-A-IS1-VR1-1P220

RPAS-LM-C-1-800×450-A-IS1-VR1-1P220

Size

1300mm×900mm

1200mm×800mm

800mm×450mm

Speed

3500rpm

Power Supply

(Single phase) 220V

Installation Area

2400mm×2600mm×1500mm

2400mm×2400mm×1500mm

1200mm×1600mm×1500mm
