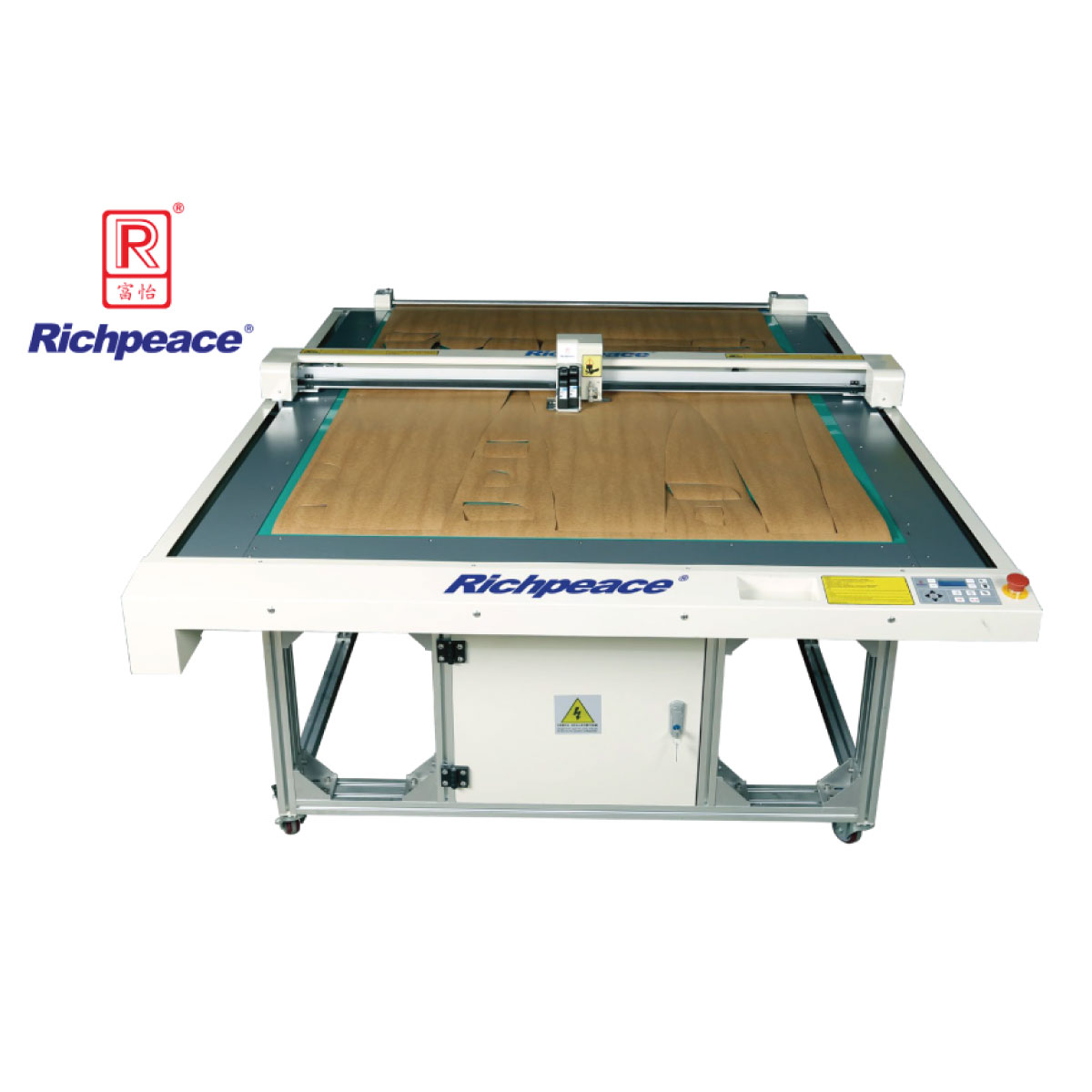

Richpeace Flatbed Pattern Cutter With Auto Feeding System

Clothing, shoes and hats, luggage, home textiles and other industries.

Voltage: Single phase AC220V±10% 50/60Hz

RPFP-NM-ID-SKC-1-1200X900-SGAF- WC2+K-AF-1P220
RPFP-NM-ID-SKC-1-1500X1200-SGAF- WC2+K-AF-1P220



,
Product Introduction

1. Compatible with two data transmission methods: USB port / RJ45 network port, which is more convenient to use.
2. Using HP45 ink cartridges, the nozzles can be easily replaced, less maintenance costs and high reliability.
3. Compatible with the file format of main CAD software on the market.
4. Imported servo motor ensures high-speed and high-precision drawing.
5. Both bitmap printing and cutting function, suitable for personalized customization.
6. Aviation aluminium alloy platform, low cost loss.
7. Long knife and short knife are optional, applicable to cutting various materials.
8. Automatic paper feeding device, supporting continuous drawing and cutting of long marker.

Model

RPFP-NM-ID-SKC-1-1200X900-SGAF- WC2+K-AF-1P220
RPFP-NM-ID-SKC-1-1500X1200-SGAF- WC2+K-AF-1P220

Size

1200mmX900 mm
1500mmX1200 mm

Power Supply

Single phase AC220V±10% 50/60Hz

Installation Area

1830mm×1435mm×1100mm
2130mm×1735mm×1100mm
