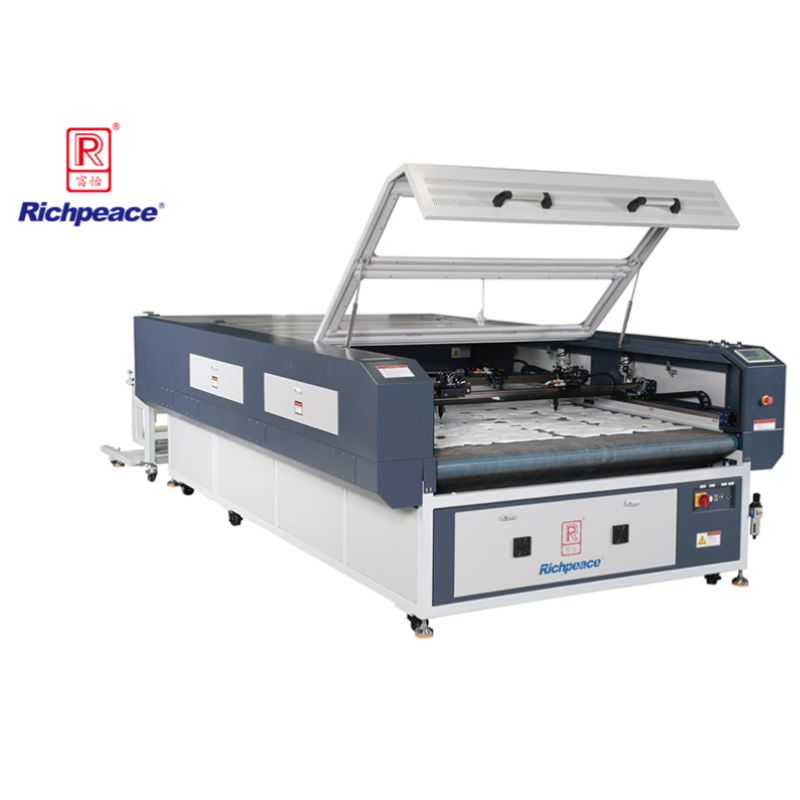

Product Introduction

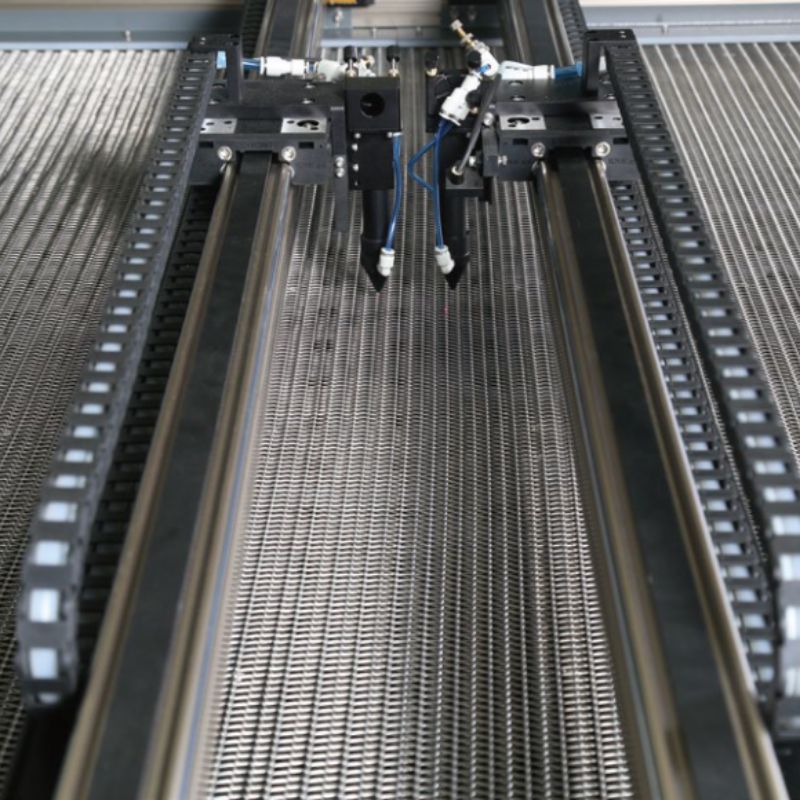

1. The dual head asynchronous laser cutting system supports two laser heads to cut different graphics at the same time. The software can reasonably distribute the processing graphics of the two laser heads according to the graphic data after typesetting, so as to improve the production efficiency.

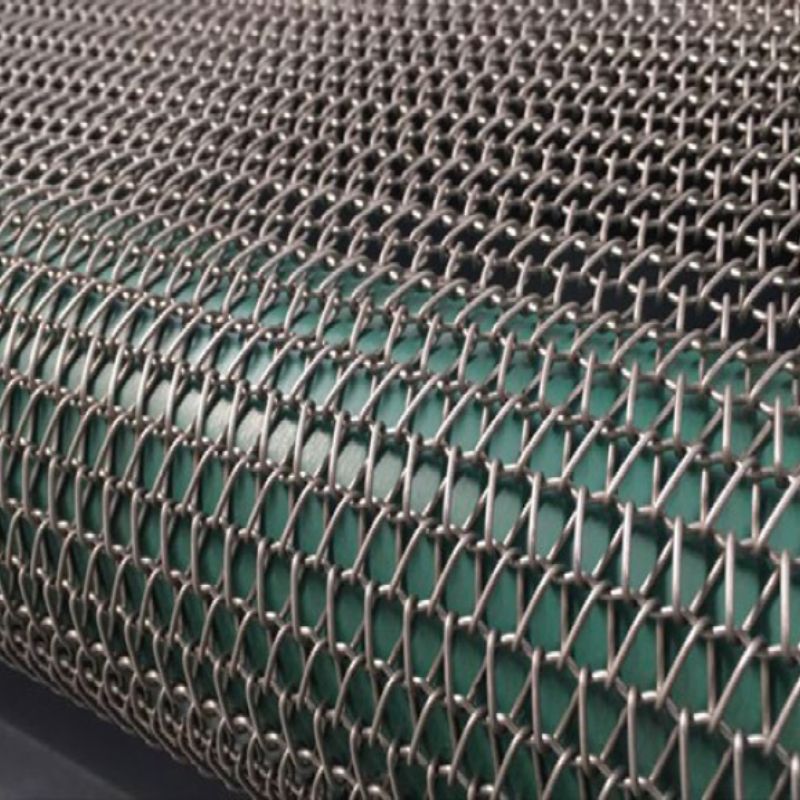

2. The fully automatic feeding system is equipped with crawler type working platform, which is stable and reliable and suitable for mass production.
3. Support multiple languages. Configured USB flash disk, USB port, and the network port, which can be replaced according to the actual requirements.
4. The high-precision built-in double axis linear guide rail has the advantages of high positioning accuracy, low wear, adaptability to high-speed movement, greatly reducing driving power, strong bearing capacity, easy assembly and interchangeability.
5. Automatic feeding stand working with crawler working platform to prevent fabric deflection.
Parameter
| Model | RPLC-NM-N-2-1800X2000-C-DDA-EGC150-IN,AF-1P220V |
| Laser Type | China made enclosed CO2 glass laser tube |
| Laser Power | China made glass laser tube 60W/80W/100W/130W/150W; enhanced 80W/100W/130W/150W optional |
| Engraving and Cutting Area(mm) | 1600X1000 1800X1000 1800X1200 1800X1600 1800X2000 |
| Pattern storage memory | 64M |
| Engraving and Cutting Speed | 0-600mm/s |
| Power Supply | AC220V/110V±10%,50Hz |
| Cooling system | Water cooling |
| Standard Configurations | Laser special water cooling machine, 2200W exhausting machine and mini air compressor |
| Optional | Metal RF laser, automatic feeding shaft, camera positioning and cutting system |
Product Parameters
| Model | RPLC-NM-N-2-1600×1000-C-DDA-EGC130-IN,AF-1P220V
RPLC-NM-N-2-1800×1000-C-DDA-EGC130-IN,AF-1P220V RPLC-NM-N-2-1800×1200-C-DDA-EGC130-IN,AF-1P220V RPLC-NM-N-2-1800×1600-C-DDA-EGC130-IN,AF-1P220V RPLC-NM-N-2-1800×2000-C-DDA-EGC130-IN,AF-1P220V |
| Size | 1600mm×1000mm
1800mm×1000mm 1800mm×1200mm 1800mm×1600mm 1200mm×2000mm |
| Speed | 600mm/s |
| Power Supply | AC220V/110V±10%,50Hz |
