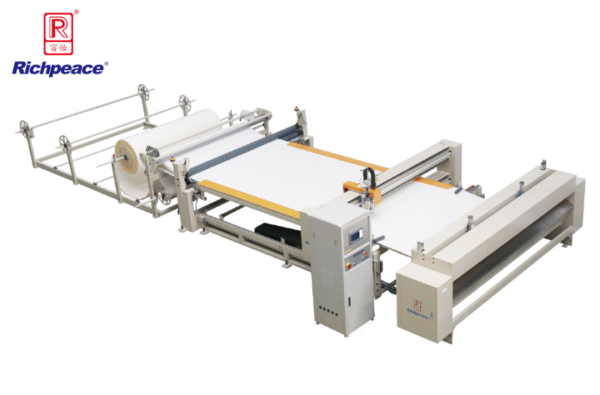

Richpeace Continuous Feeding Quilting Machine

Suitable for the single needle quilting patterns of mattress, quilt,blanket, mattress protector, bed cover, etc.
Category:

1. Richpeace brand-new model Ⅲ computer control system, friendly HMI, flexible touch control, large storage capacity, ensure high precision operation of complete machine.

2. Machine adopts LS50 lifting head, max. speed can reach 3000 rpm.

3. Powerful and professional computerized quilting functions, such as stitch length selection, pattern zoom and pattern adjustment etc.

4. Full servo motor drive, higher quilting accuracy.

5. Automatic trimming, infrared protection, mending sewing and thread breakage detection function.

6. Automatic oiling system, effectively lubricates the parts in head, and extends the machine lifetime.

7. International well-known brand jumbo rotary hook, reduces bobbin thread changing frequency.

8. Richpeace professional quilting design system, can design freely, edit, and simulate quilting, etc., powerful with complete functions.

Richpeace Continuous Feeding Quilting MachineRichpeace Continuous Feeding Quilting Machine

Model

RPQP-NM-CSF-2300×2500-SDM-LS50-VR2-SL-3P380

RPQP-NM-CSF-2600×2800-SDM-LS50-VR2-SL-3P380

RPQP-NM-CSF-3200×3200-SDM-LS50-VR2-SL-3P380

Size

2300mm×2500mm

2600mm×2800mm

3200mm×3200mm

Speed

3000rpm

Power Supply

380V, 50Hz

Power

4.0KW

Installation Area

11400mm×5500mm×1700mm

11700mm×5900mm×1700mm

12100mm×6500mm×1700mm
