1. Adopt linear scanning mode, no need extra light compensation, all-weather reliable use.
2. Support one-button automatic scanning, simple and easy to operate.
3. Support ultra-long format scanning according to different models. Scanning speed up to 7200mm/minute.
4. Scanning resolution 150-300DPI, high definition panoramic 1:1 image to ensure effective identification of various contours/notches/inner holes.
5. According to physical samples, scanning height can be set by the touch screen to adapt different thickness material.
6. Background color can be switched quickly for different colors sample, which is flexible to response different material.
7. Output general DXF file format, compatible with most of CAD software in the market.

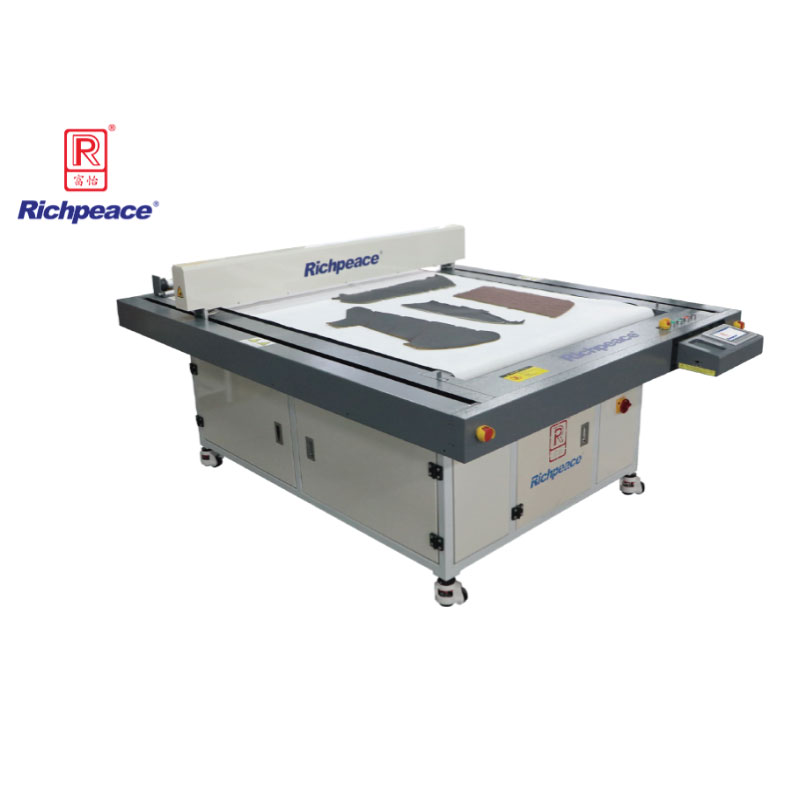

Richpeace Car-Interior Flatbed Scanning Digitizer
RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220
RPFP-NM-DI-1-1500×1200-SGSF-NA-1P220
RPFP-NM-DI-1-2000×1200-SGSF-NA-1P220
RPFP-NM-DI-1-1500×1600-SGSF-NA-1P220
RPFP-NM-DI-1-2000×1600-SGSF-NA-1P220
RPFP-NM-DI-1-2500×1600-SGSF-NA-1P220
Speed: Max. 7200mm/min.
Voltage: Single phase AC220V±10% 50/60Hz
Digital input of various paper patterns and physical samples, for car seat, door armrests, foot pads,cushion, etc.
| Model | RPFP-NM-DI-1-1000×1200-SGSF-NA-1P220 |
|---|---|
| Size | 1000×1200 |
| Speed | Max. 7200mm/min. |
| Power Supply | Single phase AC220V±10% 50/60Hz |
| Installation Area | 2300mm×1750mm×1300mm |
