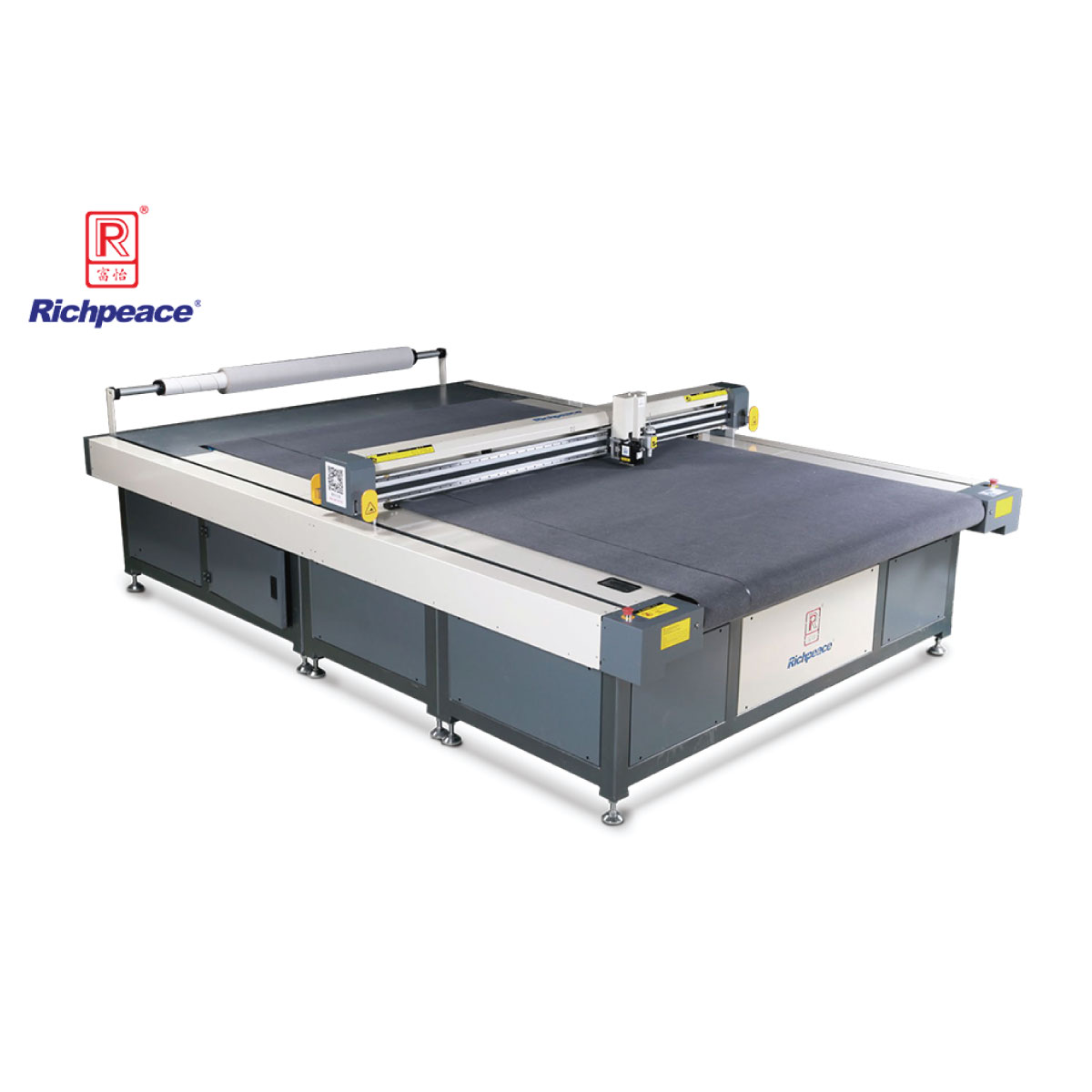

Product Introduction
Operating Mode (Any one of cutters for choosing.)
Cutting + Printing ( Suitable for cutting and sample printing at the same time.)
Cutting + Marking (Suitable for cutting and marking of fur clothing.)
Cutting + Perforating (Suitable for cutting and punching of pieces.)
Standalone cutting (Only for cutting.)
Standard configuration:
1、Circular cutter + Marking Pen / driller + Inkjet Printer
2、Ordinary feeding rack (suitable for less elastic fabrics)
3、Multiple groups of vacuum absorption blowers, independently controlled by segmented.
Optional configuration:
1、Electric oscillating knife / Pneumatic oscillating knife / straight knife / kiss-cutting knife / milling cutter, etc.
2、Constant tension feeding rack (suitable for elastic fabric)
3、Silent air pump (when there is no compressed air source)
4、Transformer, Voltage stabilizer.
Cutting Tools

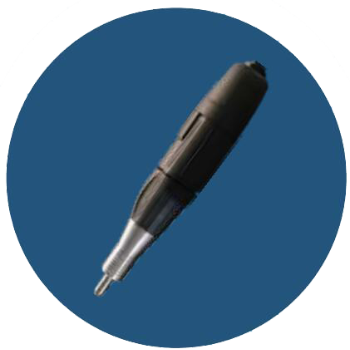

Perforating Too
Kinetic energy rotating punch, more suitable for composite material within thickness of 3mm. Punch diameter 1-6mm for options.

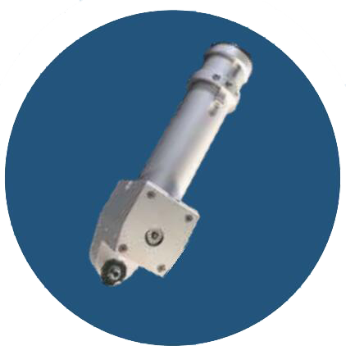

CircularKnife

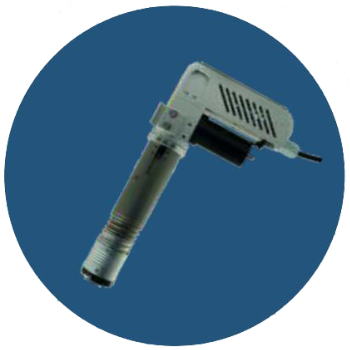

Electric Oscillating knife
Suitable for cutting medium density soft materials. High-frequency vibration ensures high-speed cutting.

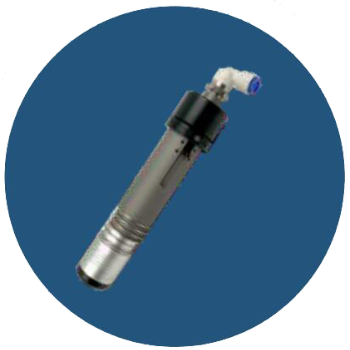

Pneumatic Oscillating Knife
Suitable for cutting heavy materials as it drives via compressed air within 8mm stroke.

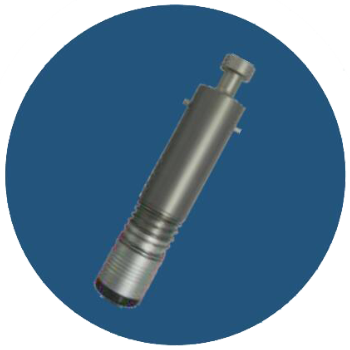

Straight Knife
For cutting paper(≤ 4 mm kraft paper, laminated paper, cardboard), KT board, single-layerleather, etc.

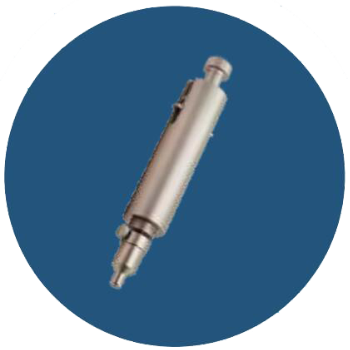

Kiss-cutting knife
Suitable for cutting stickers, reflective stickers, magnetic stickers, PP paper, PP adhesive, rubber cloth, imitation leather, cardboard, soft glass and other materials.

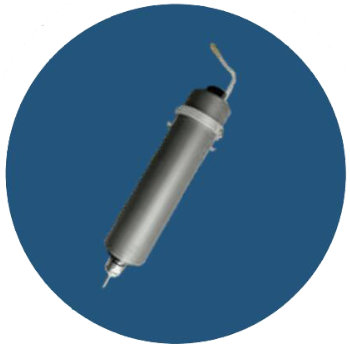

Milling cutter
Differenttypes of milling cutters can be selected, suitable for cutting non-metallic plates such as PVC boards, acrylic boards,resin epoxy boards, and insulating boards.
