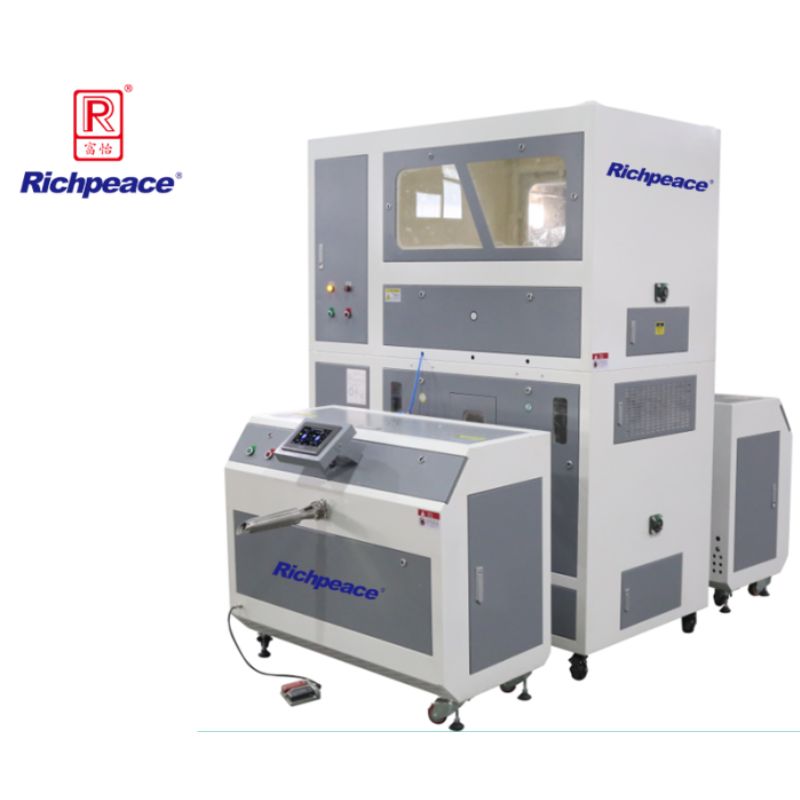

Richpeace Automatic Double-Head Four-Scale Down & Cotton Integrated Filling Machine

Product Introduction

1. Adopts vacuum filling mode, which does not damage down, and can keep down original softness, elasticity and hand feel.
2. High precision filling, can choose and set tolerance, give effective consideration on the contradiction between fillin weight and efficiency, ensure product quality and reduce raw material wastage.
3. Easy operation and save labor cost, it is available to use single station or double filling stations according to production requirement.
4. Fully programmable, controlled by PLC.
5. We can provide customized solutions to meet various production requirement.

Compressed Airrequirement

• Air volume≥0.9m³/min.
• Air pressure≥0.6Mpa.
• If the air supply is centralized, the pipe should be within 20m,thediameter of the pipe should not be less than 1 inch. If the air sourceis far away, the pipe should be bigger accordingly. Otherwise, theair supply is not enough, which will cause filling instability.
• If the air supply is independent, it is recommended tohave 7.5kW or more high-pressure air pump(1.0Mpa).

Product Parameters
