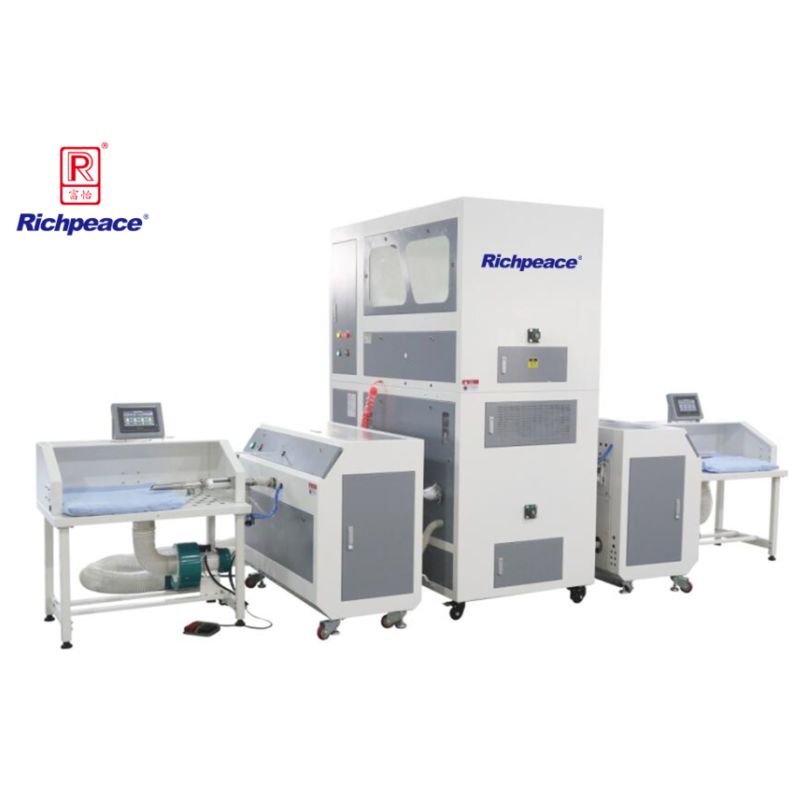

Product Introduction
1. Adopts vacuum filling mode, which does not damage down, and can keep down original softness, elasticity and hand feel.
2. High precision filling, can choose and set tolerance, give effective consideration on the contradiction between fillin weight and efficiency, ensure product quality and reduce raw material wastage.
3. Easy operation and save labor cost, it is available to use single station or double filling stations according to production requirement.
4. Fully programmable, controlled by PLC.
5. We can provide customized solutions to meet various production requirement.
Environment Requirement
Temperature: Per GBT14272-2011 requirement,filling test temperature is 20±2℃
Humidity: Per GBT14272-2011, the humidity of filling test is 65±4%RH
Compressed Airrequirement
Air volume≥0.9㎥/min.
Air pressure≥0.6mpa.
If the air supply is centralized, the pipe should be within 20m,the diameter of the pipe should not be less than 1 inch. If the air source is far away, the pipe should be bigger accordingly. Otherwise, the air supply is not enough, which will cause filling instability.
If the air supply is independent, it is recommended to have 7.5kw or more high-pressure air pump(1.0mpa).
Parameters
| Model | RPFF-RM-228 | QTY of filling | 2 |
| Main Body Size
Weighing box sizeTable size |
1675×910×2210mm
1200×580×985mm×2 950×600×930mm×2 |
Filling speed( Down 10g/unit,
Air permeability L/㎡.s) |
95 Down
0.6 Second |
| Machine size
Area covered |
4800×1680×2200mm
8.1㎡ |
Filling range | 0.2-22g |
| Storage capacity | 12-25kg | Cycle number | 4次 |
| Accuracy class | 95 Down±0.05g；
Cotton±0.05g |
USB Data import function | Yes |
| Heavy duty allocation function | Yes | Down returning system | Yes |
| Voltage | 1P220/3P380 | Power | 3.75kw |
| Packing size | 1870×1170×2450mm
1470×1470×1500mm |
Net weight
Gross weight |
609kg
859kg |
Product Parameters
| Model | RPFF-RM-228 |
