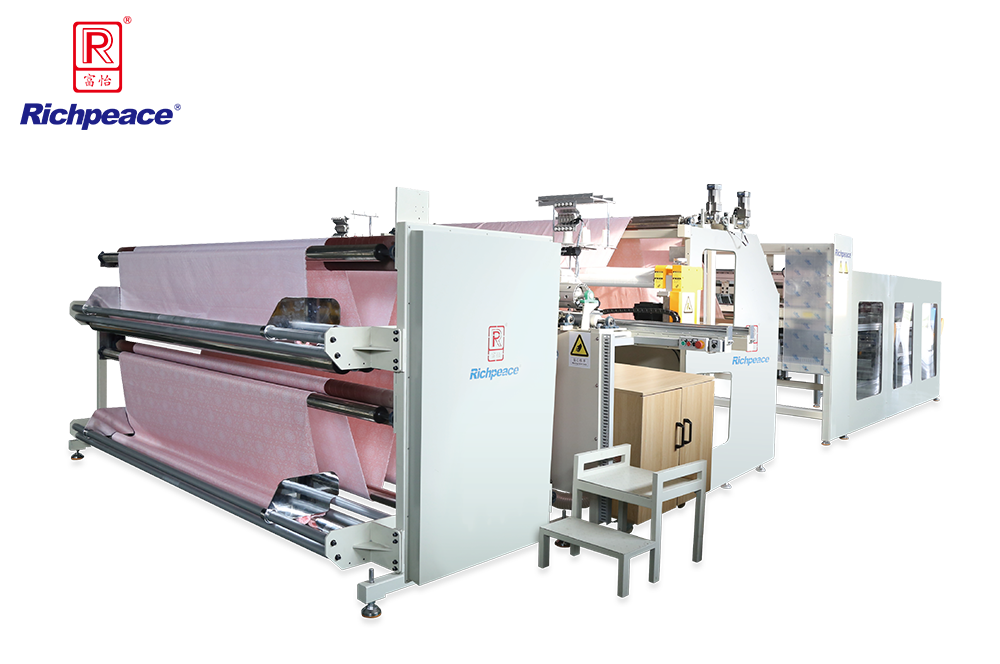

Richpeace Automatic Double Edges Overlock Sewing Machine

Applicable for duvet shell, duvet cover, etc. processing continuous double edges overlock sewing of woven fabric and cut to length semi-finished product.
Category:

Sewing module

①Adopt overlock sewing heads with mirror symmetry structure, servo motor control, exquisite sewing stitches.

②The machine head ring belt driven by independent servo system could differentially control the sewing effect.

③Sewing width is adjustable (1.5m~2.8m), easy operation.

④Equipped with scrap storage box, convenient for waste collection.

Storage module

①Coordinate with subsequent fixed length cutting module for continuous use, improve production efficiency.

Cutting module

①Could realize fixed-length switch of different sizes or specifications, high cutting efficiency.

②Manipulator could precisely control pulling and cutting, realise accurate cutting size.

Loading Module

①Double layer fabric loading structure, easy and convenient for material replacement and alignment operation.

②Equipped with fabric spreading function, there is no folds or wrinkles before fabric entering sewing unit.

③Constant tension control function ensures that fabric is flat and even during feeding.

Discharging module

①Equipped with signal detection and signal interface, could connect and match subsequent equipment.

②Could realize two discharging modes: single-piece outflow and multi-pieces stacking.



Richpeace Automatic Double Edges Overlock Sewing Machine Richpeace Automatic Double Edges Overlock Sewing Machine



Machine Configuration



  • Richpeace Model-III computer control system
  • Sewing module (mirror overlock sewing heads)
  • Machine head ring belt device
  • Scrap collecting device
  • Fabric Storage module
  • Cut-to-fixed-length Module
  • Discharging module
  • Full servo motor, higher control precision.
Model

RPAS-W-O4E-2-2800×2700-O3X5-CN-3P380

Size

1500mm-2800mm

Speed

7000RPM

Power Supply

Three phase 380V 50Hz

Installation Area

13000×5000×2000
