Product Introduction

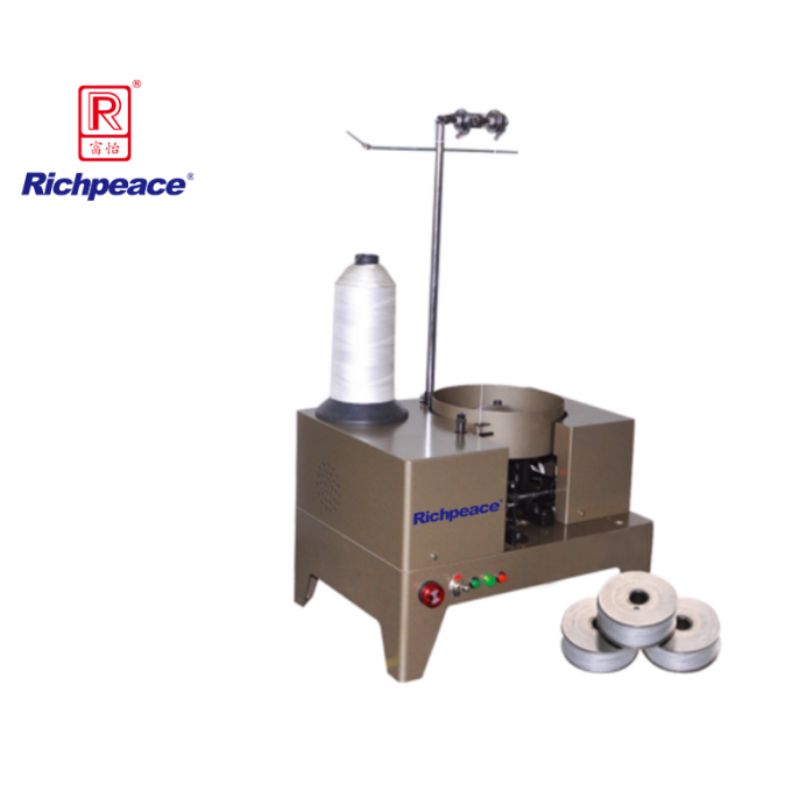

1. Special equipment of automatic bobbin thread winding for thick material sewing machines
2. Simple operation, no bobbin jamming, no damage on bobbin, not causing thread broken easily, lower cost, high efficiency and stability
3. With thread tucking function, not easy loose-end after thread trimming
4. Maximum 80 bobbins can be placed in one time

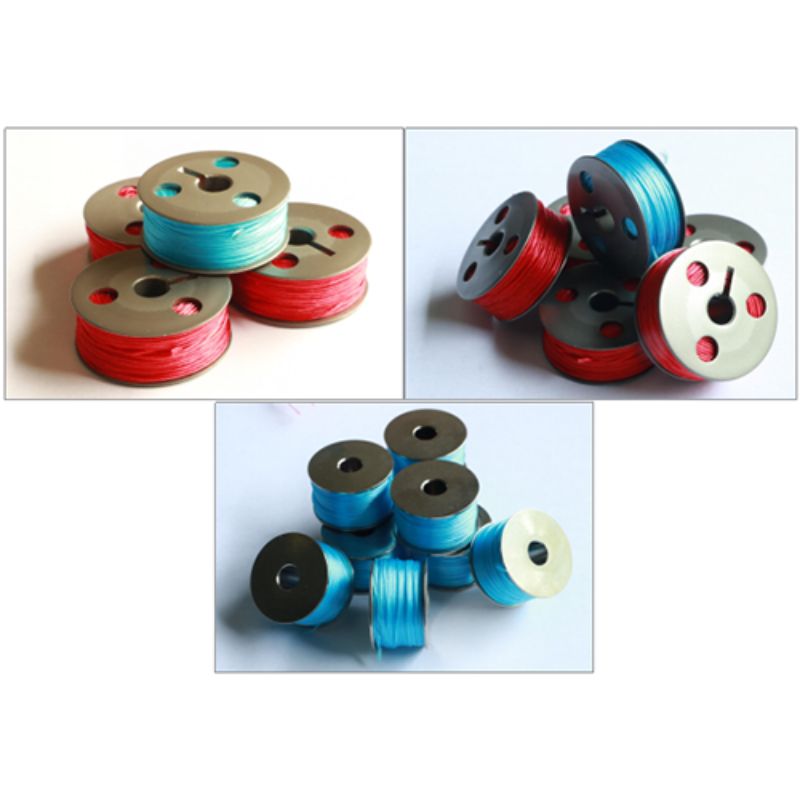

| Bobbin Specifications | Bobbin Diameter | Bobbin Height | Inner Hole Diameter | Axle
Diameter |
| RP-6A-YX | 23MM | 30MM | 6MM | 8MM |
| RP-6B-YX | 28MM | 31MM | 6.5MM | 8.5MM |
| RP-6C-YX | 34.5MM | 15MM | 7MM | 9MM |
| Model | RP-6A/B/C-YX | Speed | 1350RPM |
| Voltage | AC200V 50HZ | Power | 40W
APPROX. |
| Net Weight | 23KG/25KG | Machine
Size |
400×300×
300mm (LWH) |
Product Parameters
| Model | RP-6A/B/C-YX |
| Speed | 1350RPM |
| Power | 40W |
