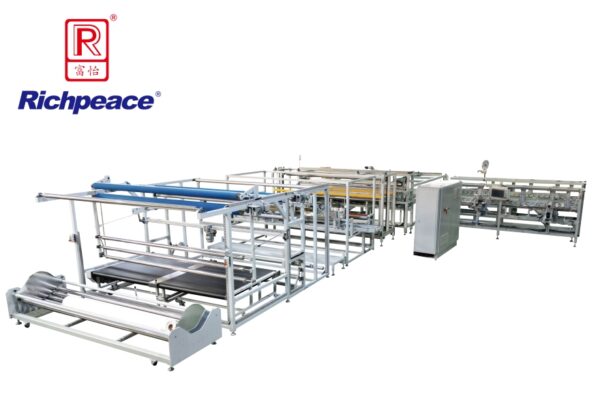

Richpeace Automatic Bed Sheet Production Line

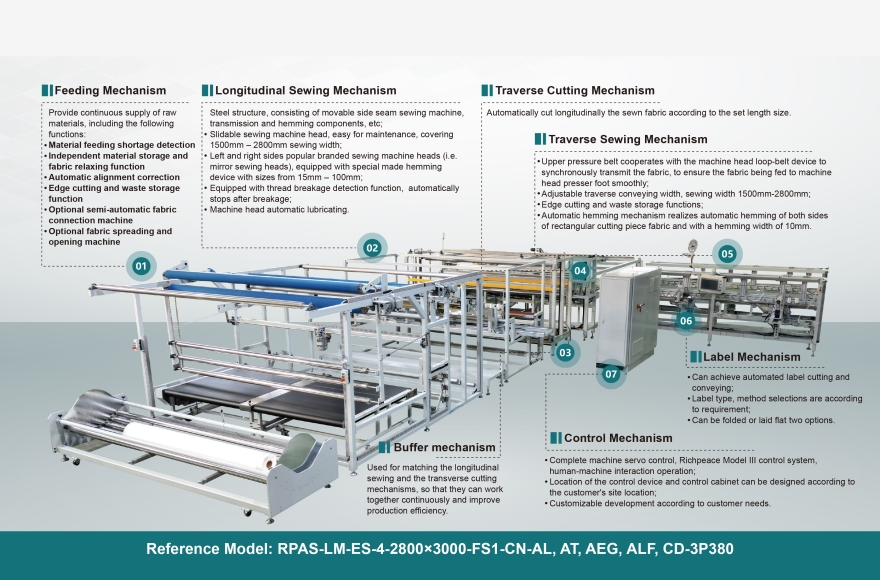

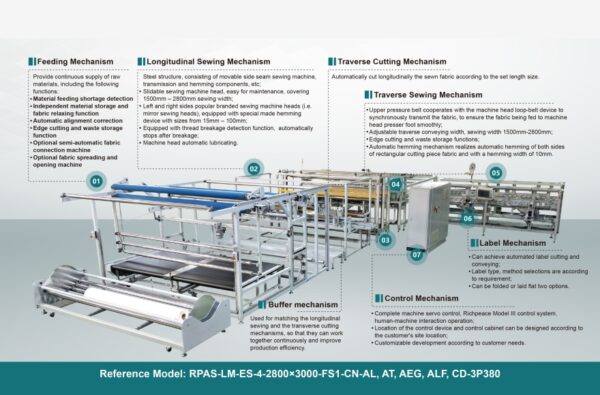

This automatic bed sheet production line is composed of various mechanisms, including the feeding, the longitudinal sewing with adjustable width, a traversecutting with fixed length pulling, a traverse conveyor with automatic feeding, a traverse sewing with automatic hemming, and a discharge mechanism.
01Feeding Mechanism
Provide continuous supply of rawmaterials, including the followingfunctions:
Material feeding shortage detection
Independent material storage andfabric relaxing function
Automatic alignment correction
Edge cutting and waste storagefunction
Optional semi-automatic fabricconnection machine
Optional fabric spreading andopening machine
02Longitudinal Sewing Mechanism
Steel structure, consisting of movable side seam sewing machine,transmission and hemming components, etc;
Slidable sewing machine head, easy for maintenance, covering1500mm – 2800mm sewing width;
Left and right sides popular branded sewing machine heads (i.e.mirror sewing heads), equipped with special made hemmingdevice with sizes from 15mm – 100mm;
Equipped with thread breakage detection function, automaticallystops after breakage;
Machine head automatic lubricating.
03Buffer mechanism
Used for matching the longitudinal sewing and the transverse cutting mechanisms, so that they can work together continuously and improve production efficiency.
04Traverse Cutting Mechanism
Automatically cut longitudinally the sewn fabric according to the set length size.
05Traverse Sewing Mechanism
Upper pressure belt cooperates with the machine head loop-belt device tosynchronously transmit the fabric, to ensure the fabric being fed to machinehead presser foot smoothly;
Adjustable traverse conveying width, sewing width 1500mm-2800mm;
Edge cutting and waste storage functions;

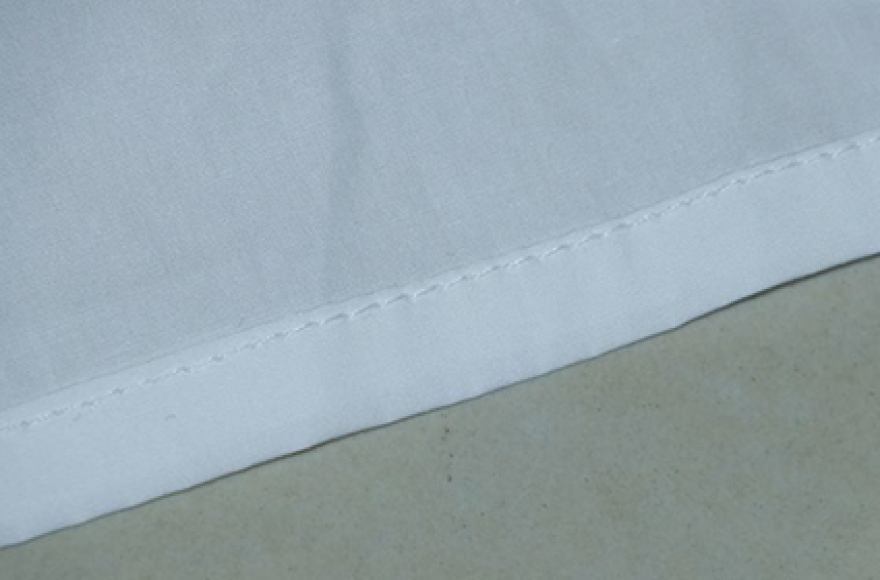

Automatic hemming mechanism realizes automatic hemming of both sidesof rectangular cutting piece fabric and with a hemming width of 10mm.
06Label Mechanism
Can achieve automated label cutting andconveying;
Label type, method selections are accordingto requirement;
Can be folded or laid flat two options.
07Control Mechanism
Complete machine servo control, Richpeace Model III control system,human-machine interaction operation;
Location of the control device and control cabinet can be designed according tothe customer’s site location;
Customizable development according to customer needs.
Configuration
