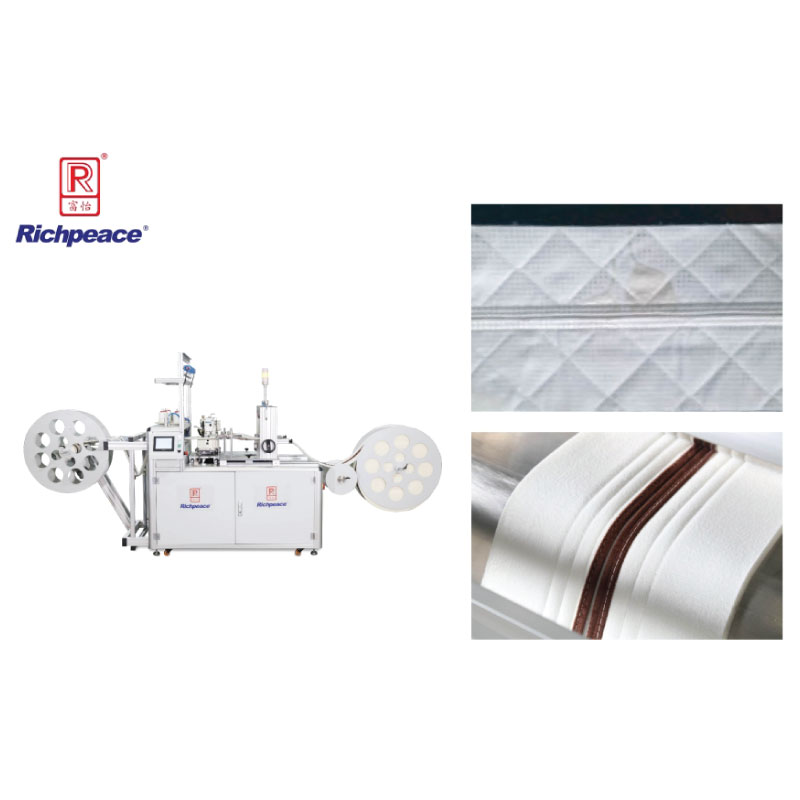

Mattress Border Zipper Sewing Machine

RPAS-NM-CS-1-A-CS4-CN-C, AR-1P220
Power: 2kW
Voltage: 220V/50Hz
For mattress protector production, automatic rubber bands sewing auto edge-alignment, auto-feeding, detect material, etc.

Category:

1. Speed: 3000 RPM
2. Productivity: 10m/min.
3. Zipper Width: 32mm (can be customized).
4. Products Width: ≤350 mm (can be customized).
5. The relative position of the zipper can be adjusted according to the product process.
6. Synchronous cutter design, pneumatic control cutter pressure, easy to make adjustment.
7. Mattress border left-right limits set-guide mechanism, apply for border width and left right position adjustment.

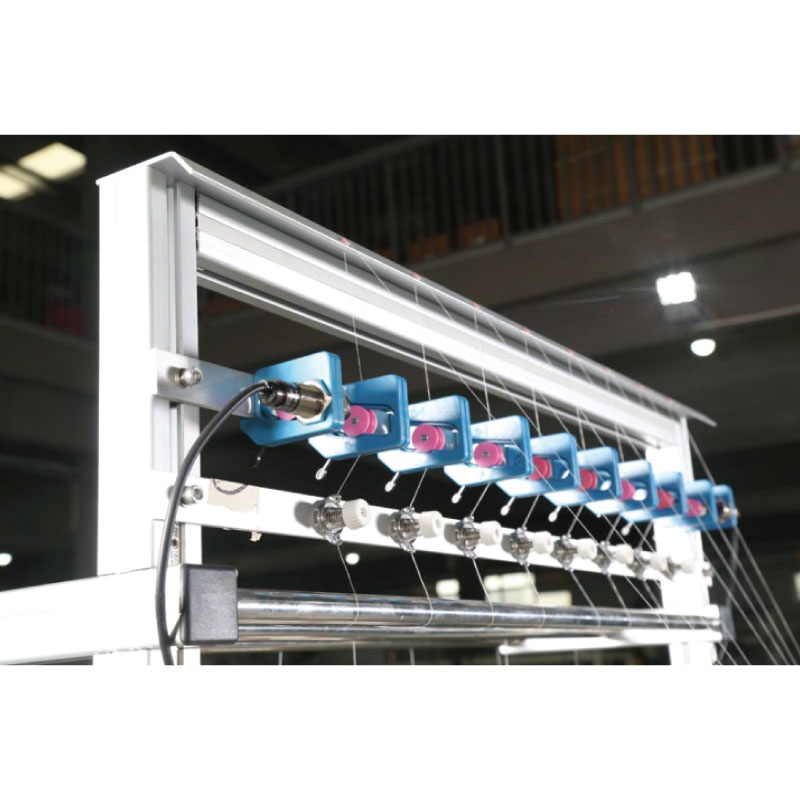

8. Automatic thread breakage detect.
9. Production output counting function.

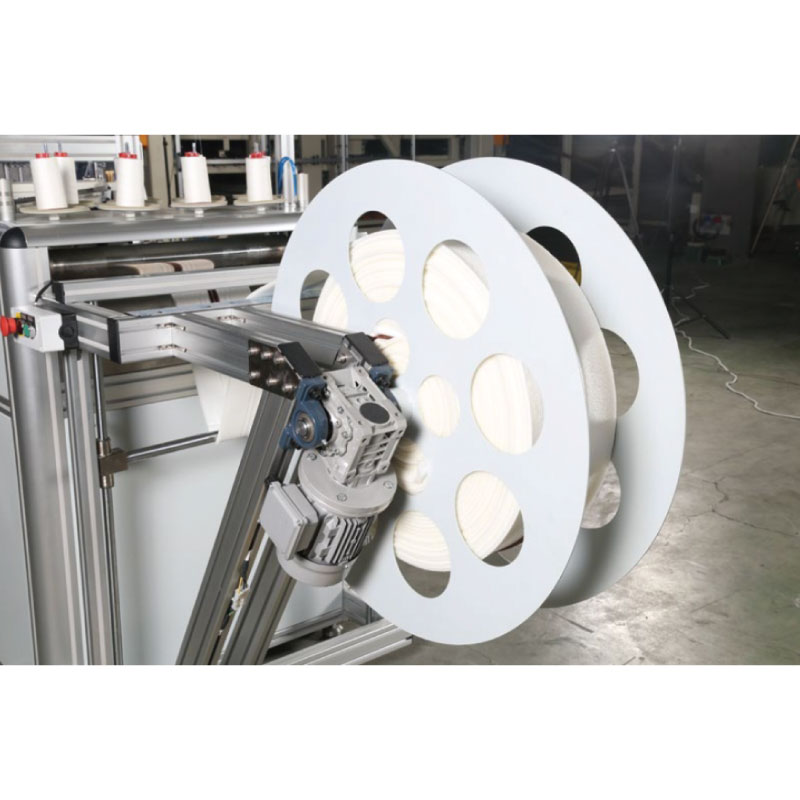

10. Automatic winding back function.

Model

RPAS-NM-CS-1-A-CS4-CN-C, AR-1P220

Power Supply

220V/50Hz

Power

2kW

Installation Area

4100x1100x1900mm
