Product Introduction

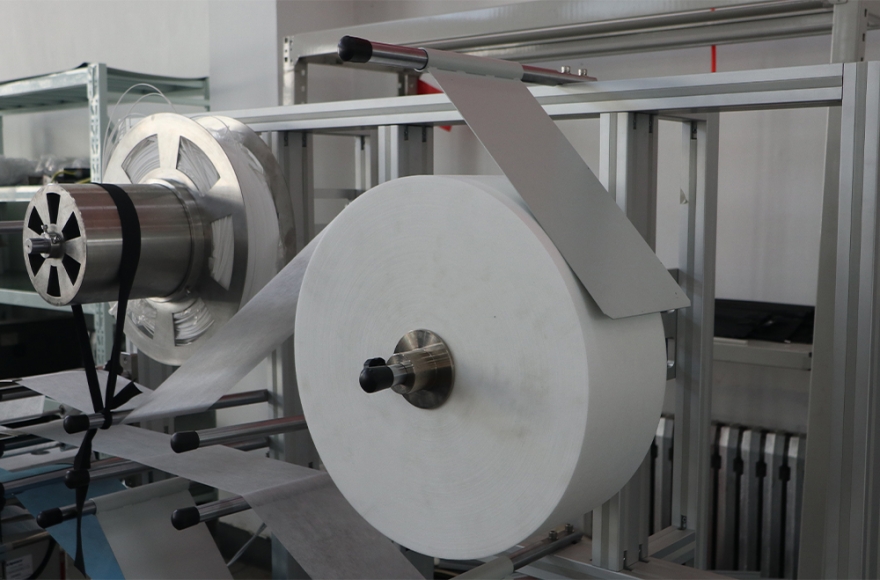

1. Three fabrics (surface layer, filter layer and bottom layer) feeding in auto-align, sides symmetrically welding by ultrasonic, and continuously cutting to mask pieces by welding roller , automatic earloop welding, after that stacking automatically.

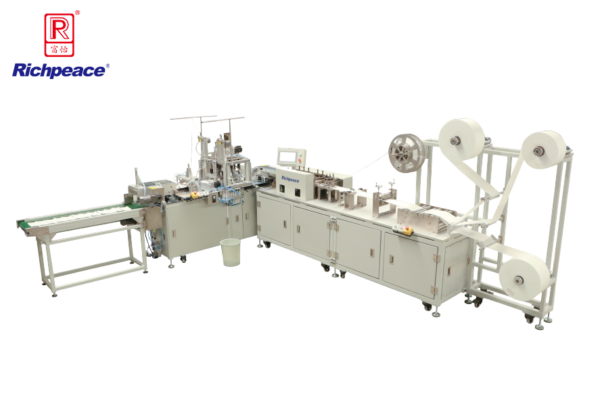

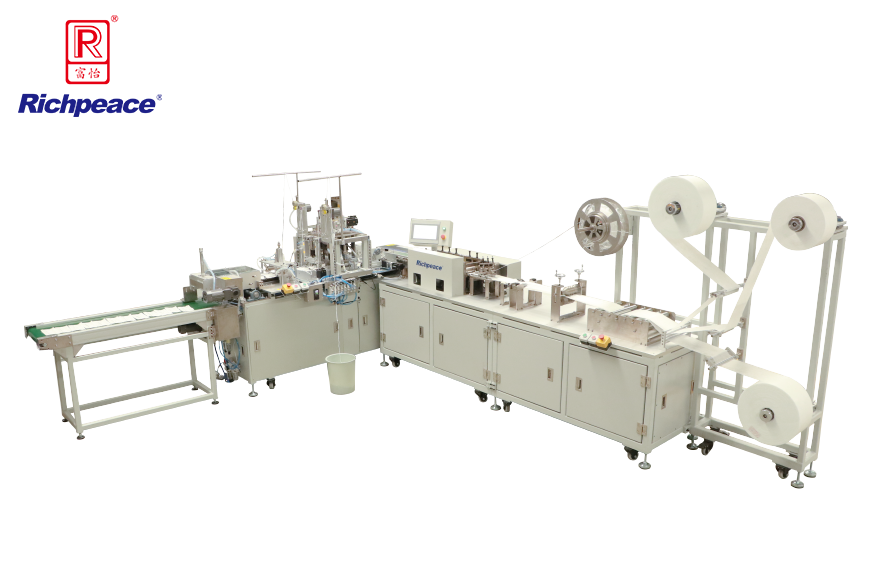

2. The production line adopts 1 + 1 structure, one main mask blanking station and one earloop welding station which are connected by the transfer system.
3. The nose clip is cutting and feeding automatically .
4. The ear loop is welding and cutting automatically.
Product Parameters
| Model | RPUM-NF28-1URWC-1-175×95-T-VSA-LF2000-NA-3P380
RPUM-NF28-4USW-2-10×10-T-VSA-LF1500-NA-3P38 |
| Size | 4900mm×3830mm×1700mm（L×W×H） |
| Speed | Max.70+pcs/min |
| Power Supply | Single-phase 220V/50Hz or Three-phase 380V/50Hz |
| Power | 12 kW |
