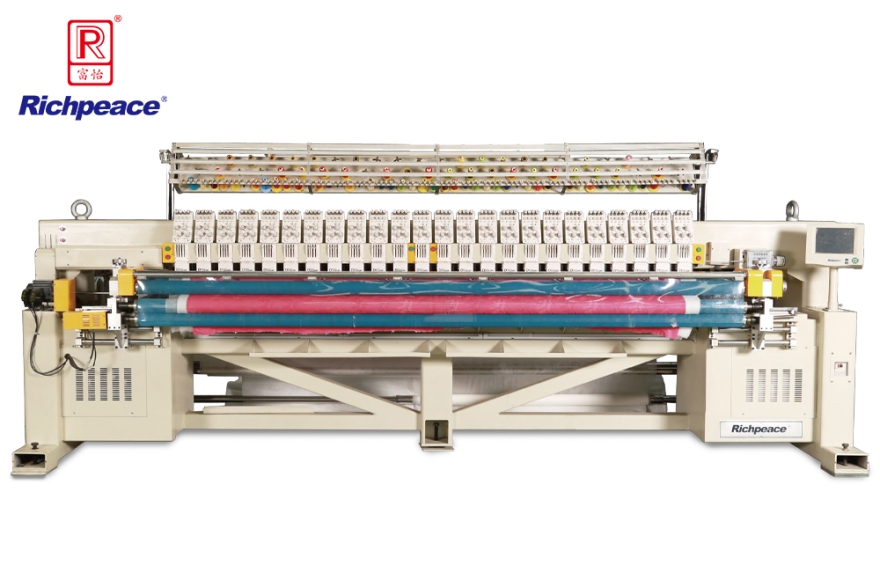

Computerized Multi-Needle Shuttle Quilting Machine (Flying Shuttle)

For small size pattern quilting of fitted sheet, bed covers, summer quilts, quilts and any other products with quilt pattern.
Category:

1. 17-inch LCD screen, easy to understand, quick to operate, can display quilting patterns in real time, image intuitive.

2. When the upper thread is broken during quilting process, the machine operation is pause, and prompts the related message, to help worker quickly analyse where the problem is.

3. Once power failure during quilting, reconnect the power, machine can continue the pattern in the state before the power off and keep on working.

4. Automatic store the work information in a period of time, and provide the quilted quantity and total production anytime.

5. Richpeace professional quilting pattern design software, freely design quilts pattern is possible, good to learn and suitable for the application.

Model

RPQC-NM-LS2-64+64-203.2×1600.2-B-1"RNS-SS7R-NA-3P380

RPQC-NM-LS2-94+94-305×2362.2-B-1"RNS-SS10R-NA-3P380

RPQC-NM-LS3-94+94+94-305×2362.2-B-1"RNS-SS10R-NA-3P380

RPQC-NM-LS3-128+128+128-305×3225.8-B-1"RNS-SS10R-NA-3P380

Size

1600mm

2450mm

2450mm

3300mm

Speed

20-110 (m/hr)

Power Supply

380V50Hz

Power

5.5kW

Installation Area

3750mm×1100mm×1800mm

4650mm×1100mm×1800mm

5550mm×1100mm×1830mm
