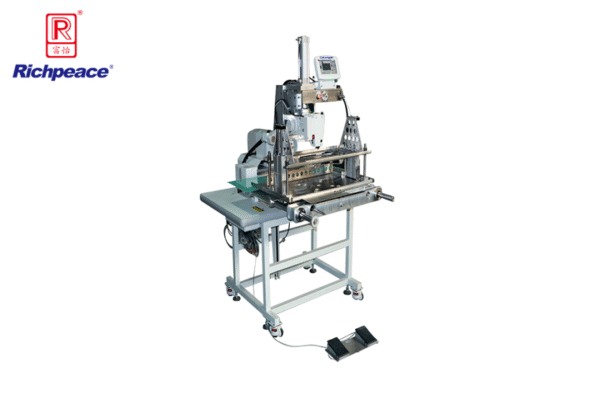

1. Touch screen panel and control all-in-one, freely to set the sewing stitches type.
2. Press arm and sewing frame work synchronously, ensure high precision bar-tacking.
3. Machine head auto lifting, raising up in 150mm height.
4. No need specially to fix the pad material during bar-tacking work. Easily place to sewing frame, precise positioning is achieved right away.
5. Bar-tacking stitches are good consistency and stable quality.
Suitable for chair pad, cushion and pillow, all those with fillings and bar-tacking requirement for reinforcing sewing work.
| Model | RP-SH-BT-1-300×200-A-LH150-1P220 | Pattern Input | USB memory stick |
| Needle | DP×17 #18-25 | Voltage | AC 220V 50Hz |
| Stitch | Single Needle Lockstitch | Power | 750W |
| Maximum Speed | 1500rpm | Air Pressure | 0.6-0.8mpa |
| Sewing Circle Diameter Range | 0-30mm | Net Weight | 200kg |
| Thickness of Sewn Cushion | Within 125mm | Gross Weight | 260kg |
| Sewing Size Range | L300×W200（mm） | Machine Size | 1340×1210×1700（mm） |
| Bar-tacking Stitch Type | Straight line, Round, Cross,
Star and Round radial bartack |
Packaging Size | 1420×1210×1830（mm） |
